Industrial Park 358 Fence
1. Anti-Climb
Ultra-dense 76.2×12.7mm mesh prevents climbing.
2. Anti-Cut
High-tensile steel resists bolt cutters and saws.
3. Impact & Tamper Resistance
Rigid welded steel panels withstand heavy impact – no deformation.
4. Superior Corrosion Protection
Hot-dip galvanized + PVC coating (RAL colors). 25+ years rust-free.
Panel Specifications
I&M Post Industrial Park 358 Fence Specifications
| Parameter | Specifications |
|---|---|
| Line Wire × Cross Wire | 4.0×3.0mm / 4.0×4.0mm / 4.5×3.0mm / 4.5×4.5mm |
| Hole Size | 76.2×12.7mm / 75×12mm |
| Panel Length | 2.0m / 2.2m / 2.4m / 3.0m |
| Panel Height | 1800mm / 2000mm / 2200mm / 2400mm / 2800mm / 3000mm |
| Number of Bends | Corresponding to height: 4 / 4 / 4 / 4 / 5 / 5 |
| Common Color | Green RAL6005 / Grey RAL7016 / Black RAL9005 |
| Matching Post | I&M Post (high-structural rigidity, designed for high-vandalism areas) |
H Post Industrial Park 358 Fence Specifications
| Parameter | Specifications |
|---|---|
| Horizontal Wire Dia. | 4mm×3mm / 4mm×4mm / 4.5mm×4mm / 4.5mm×4.5mm |
| Hole Size | 76.2×12.7mm / 75×12mm |
| Panel Length | 2.0m / 2.2m / 2.4m |
| Panel Height | 1800mm / 2000mm / 2200mm / 2400mm / 2800mm / 3000mm |
| Common Color | Green RAL6005 / Grey RAL7016 / Black RAL9005 |

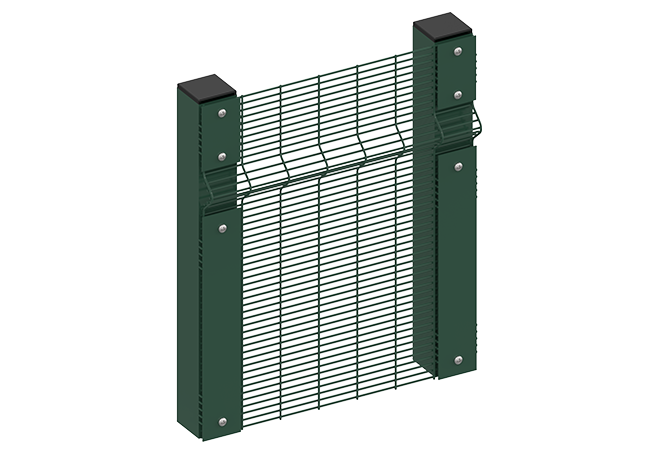

| Matching Post | H Post (no exposed fasteners, panel embedded, maximum rigidity) |
Available Post Systems
Column specifications
| Post Type | Specification |
|---|---|
| Hole Size | 50x50mm/60x60mm/80 x80mm/100 x100mm. |
| Panel Length | 1.8mm/2.0mm/2.5mm/3.0mm. |
| Panel Height | 830mm/2030mm/2230mm/2430mm/2800mm/3000mm. |
| Post Length | 2400mm/2500mm/2800mm/3000mm/3500mm/3700mm. |
Surface Treatment: 1. Black tube Hot-dipped galvanized，2. Galvanized tube PVC coated.
Special Accessories

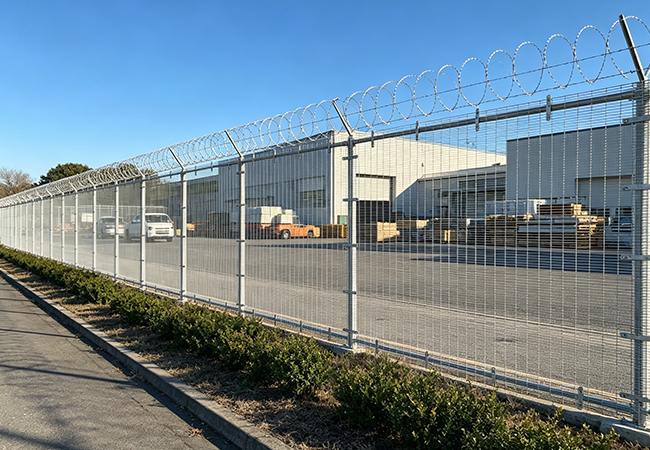

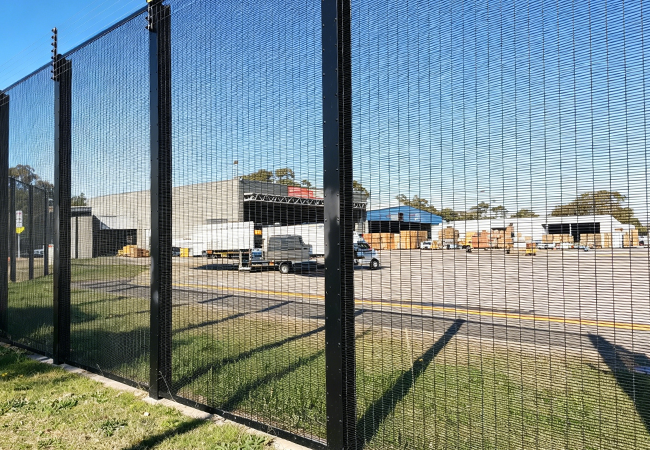

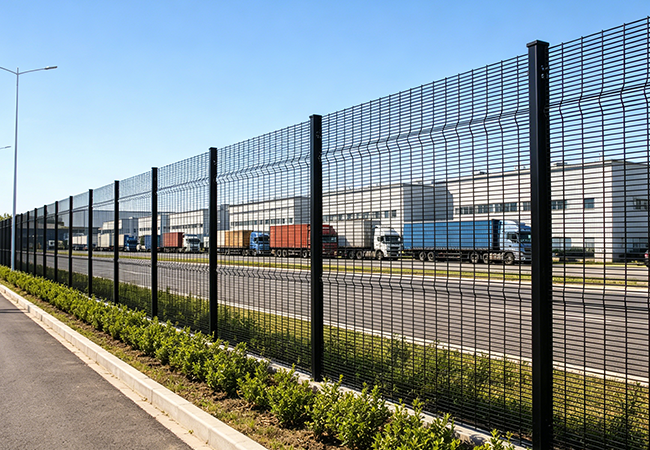

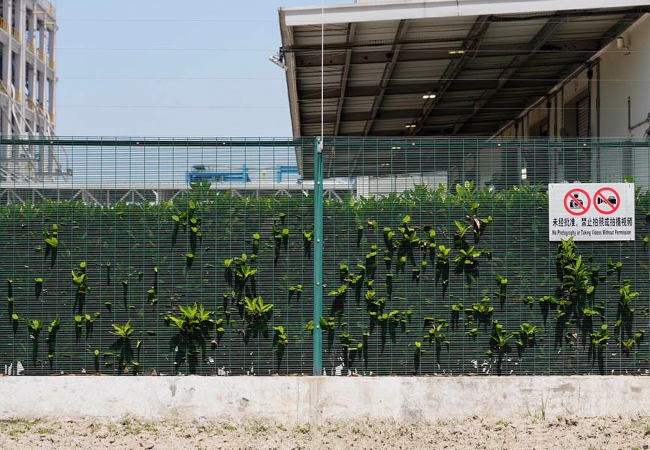

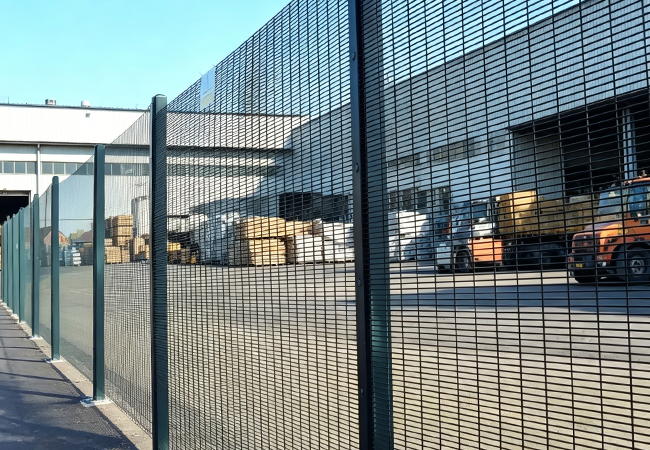

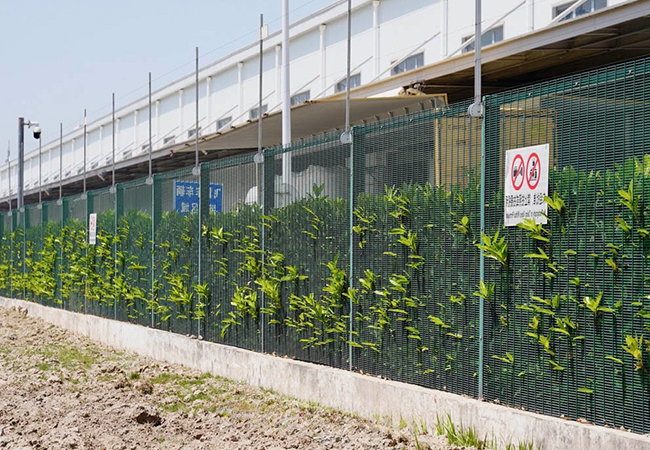

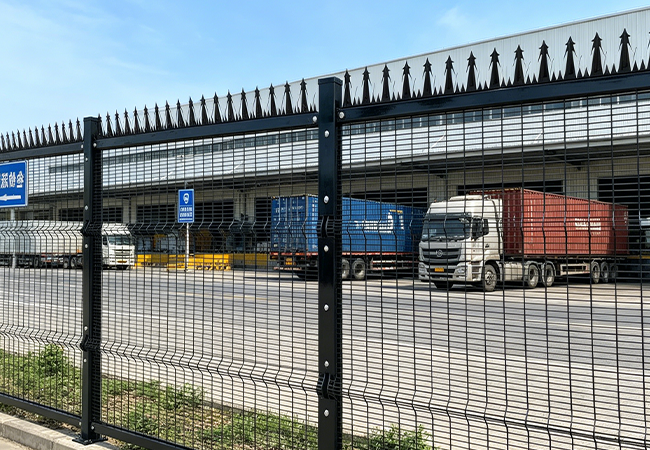

Industrial Park 358 Fence Case
Secures logistics warehouse perimeters, controls truck entry checkpoints, and isolates container storage zones.
Protects automotive parts manufacturing plants, restricts employee access, and secures hazardous material areas.
Separates factory compounds, controls heavy vehicle gates, and encloses staff parking areas.
Defends e-commerce distribution center boundaries, secures loading bays, and protects office annexes.
6 Steps for Fast Industrial Park 358 Fence Setup
Step 1: Site Assessment
Mark fence line around warehouses, loading docks, and utility access roads. Coordinate with park management.
Step 2: Post Hole Digging
Dig holes 900mm deep for 2.4m fence. Diameter 300mm. Add 100mm gravel base.
Step 3: Post Setting & Concrete
Set posts plumb. Pour C25 concrete. Cure 48 hours. For paved areas, use flange plates with anchor bolts.
Step 4: Panel Mounting
Slide 358 panels into H-slots or attach with spider clips. Secure with anti-tamper bolts (torque 45 Nm).
Step 5: Gate & Access Control Installation
Hang heavy-duty swing or sliding gates. Install card readers, intercom brackets, or hydraulic arms.
Step 6: Final Security Check
Verify post plumb (<2mm/m), panel level, bolt torque. Test gate operation. Provide as-built drawing.
Why Choose BDFENCE for Your Industrial Park?
1. Industrial-Grade Materials & Anti-Corrosion
We use high-strength low-carbon steel with hot-dip galvanizing + heavy PVC coating. Withstands industrial pollution, chemical drift, and coastal humidity – 25+ years rust-free, zero maintenance.
2. Customized for Industrial Zones
Available in H-post, square, and heavy I&M systems. Support custom heights (up to 3m), colors, and sensor-ready posts. Tailored for logistics parks, manufacturing plants, and R&D campuses.
3. Expert Pre-Sales & Fast After-Sales Support
Our engineers provide free CAD layout, material takeoff, and tender documentation. After-sales: 7×24 responsive service, spare parts stock, and on-site installation guidance if required.
4. Full Industrial Chain – Factory Direct
Located in Anping, China (wire mesh capital). From wire drawing to PVC coating – all under one roof. Strict quality control, fast lead time (15-20 days), competitive pricing for large industrial orders.
5. Global Industrial Export Experience
Supplied industrial parks, free trade zones, and logistics hubs across Asia, Europe, Middle East, and Americas. Full certification packages (ISO, CE, SGS, test reports) ready for your bid.
📌 In short: Premium steel + dual anti-corrosion + custom industrial designs + engineering support + global logistics = BDFENCE, your reliable partner for industrial park perimeter security.
