Prison 358 fence
1. Anti-Climb
Ultra-dense 76.2×12.7mm mesh prevents climbing.
2. Anti-Cut
Ultra-dense mesh resists bolt cutters.
3. Impact & Tamper Resistance
Rigid welded steel panels withstand heavy impact – no deformation.
4. Superior Corrosion Protection
Hot-dip galvanized + PVC coating (RAL colors). 25+ years rust-free.
5. Modular & Fast Installation
Prefabricated panels + post system reduce labor and downtime.

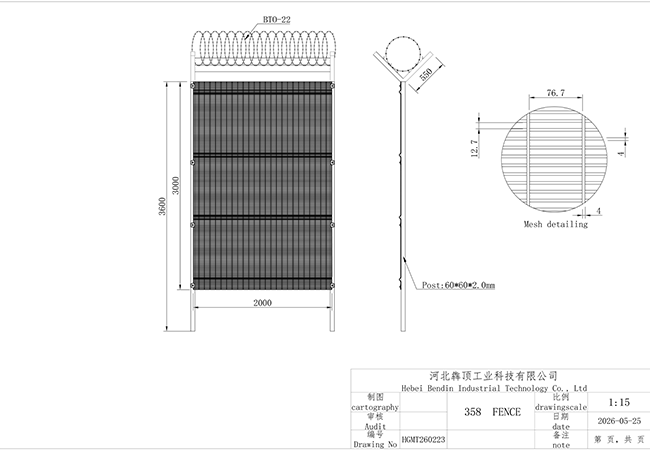

Panel Specifications
I&M Post Prison 358 fence Specifications
| Parameter | Specifications |
|---|---|
| Line Wire × Cross Wire | 4.0×3.0mm / 4.0×4.0mm / 4.5×3.0mm / 4.5×4.5mm |
| Hole Size | 76.2×12.7mm / 75×12mm |
| Panel Length | 2.0m / 2.2m / 2.4m / 3.0m |
| Panel Height | 1800mm / 2000mm / 2200mm / 2400mm / 2800mm / 3000mm |
| Number of Bends | Corresponding to height: 4 / 4 / 4 / 4 / 5 / 5 |
| Common Color | Green RAL6005 / Grey RAL7016 / Black RAL9005 |
| Matching Post | I&M Post (high-structural rigidity, designed for high-vandalism areas) |
H Post Prison 358 fence Specifications
| Parameter | Specifications |
|---|---|
| Horizontal Wire Dia. | 4mm×3mm / 4mm×4mm / 4.5mm×4mm / 4.5mm×4.5mm |
| Hole Size | 76.2×12.7mm / 75×12mm |
| Panel Length | 2.0m / 2.2m / 2.4m |
| Panel Height | 1800mm / 2000mm / 2200mm / 2400mm / 2800mm / 3000mm |
| Common Color | Green RAL6005 / Grey RAL7016 / Black RAL9005 |
| Matching Post | H Post (no exposed fasteners, panel embedded, maximum rigidity) |

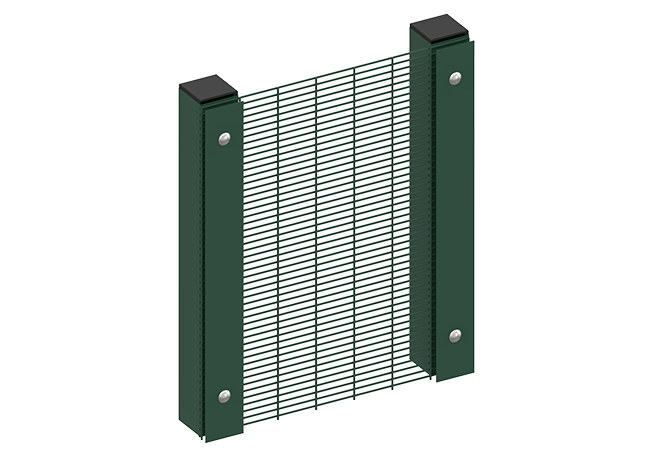

Available Post Systems
Column specifications
| Post Type | Specification |
|---|---|
| Hole Size | 50x50mm/60x60mm/80 x80mm/100 x100mm. |
| Panel Length | 1.8mm/2.0mm/2.5mm/3.0mm. |
| Panel Height | 830mm/2030mm/2230mm/2430mm/2800mm/3000mm. |
| Post Length | 2400mm/2500mm/2800mm/3000mm/3500mm/3700mm. |
Surface Treatment: 1. Black tube Hot-dipped galvanized，2. Galvanized tube PVC coated.
Special Accessories

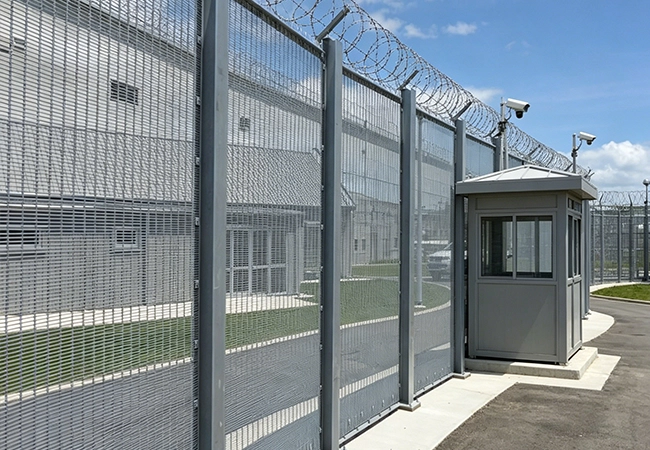

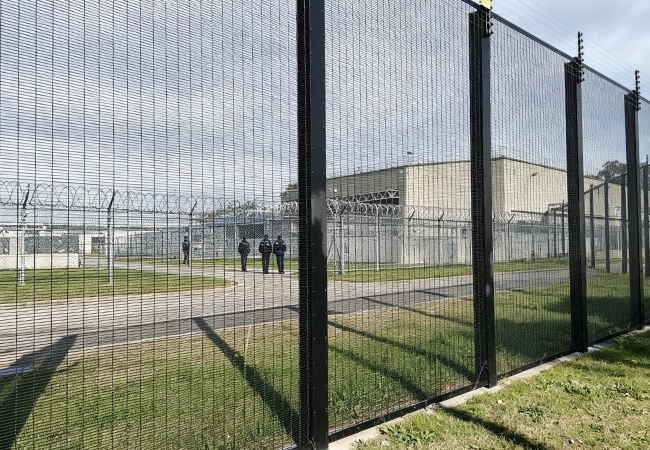

Case of the 358 Fence in the Prison
Outer perimeter double-fence zones, exercise yards.
Interior segregation and vehicle sally port enclosures.
Scaled heights with anti-climb top.
Secure transport corridors and parking areas.
The installation process of prison fences
Step 1: Site Layout & Marking
Clear the fence line. Mark post centers with string line and spray paint. Standard post spacing: 2.0m – 3.0m (depending on panel length).
Step 2: Post Hole Excavation
Dig holes to depth of at least 800mm for a 2.4m post (1/3 of post height). Hole diameter ≈ 3× post width. Add 100mm gravel base for drainage.
Step 3: Post Setting & Concrete
Insert post, brace plumb in both directions. Pour C25 concrete, vibrate to remove air pockets. Allow to cure for minimum 72 hours before loading.
Step 4: Panel Preparation
Unpack 358 mesh panels, inspect coating for damage. Sort by height. For H‑Post system, ensure clean edges; for I&M Post, confirm panel length matches spacing.
Step 5: Panel Mounting
H‑Post system: Slide panel vertically into the H-slot (no exposed bolts). Use rubber mallet to seat fully.
I&M Post system: Attach spider clips at top, middle, bottom. Secure with one-way security bolts and torque wrench (40–50 Nm). Bolt heads break automatically.
Step 6: Top Extensions & Razor Wire (if required)
Bolt Y‑post or L‑post extensions using anti‑tamper bolts. Unroll concertina razor wire and attach to extension arms with galvanized clips every 300mm. Tension slightly to prevent sagging.
Step 7: Final Inspection & Handover
Check: posts plumb (<2mm per meter), panels level, all bolts tight, no sharp edges, coating intact. Verify gate swing and lock operation. Provide as‑built record and torque test report.
Your Trusted Partner for 358 High Security Fencing
1. Premium Materials & Advanced Anti-Corrosion
We use high-strength low-carbon steel wire with hot-dip galvanizing + heavy PVC coating. Withstands harsh outdoor environments, coastal climate, and 25+ years of service – no rust, no maintenance worries.
2. Flexible Options & Full Customization
Available in I&M Post and H‑Post systems. Support custom panel heights (up to 3000mm), lengths (up to 3.0m), colors (RAL6005 green, RAL7016 grey, RAL9005 black), and top extensions (Y/L‑post for razor wire). Tailored for prisons, detention centers, military bases, and critical infrastructure.
3. Expert Pre‑Sales Guidance & Fast After‑Sales Support
Our engineering team provides free CAD design and precise specification matching for your project bid. After‑sales: 7×24 hours responsive service, technical troubleshooting, and on‑site installation support if needed. Make your perimeter secure, compliant, and hassle‑free.
4. Full Industrial Chain – Factory Direct
Located in Anping (the wire mesh capital of the world). From wire drawing to welding, coating to packaging – all under one roof. Better quality control, faster delivery, and competitive pricing.
5. Global Export Experience
Served government tenders, UN projects, prison authorities, and international contractors across Southeast Asia, Middle East, Africa, and Latin America. Full documentation (ISO, CE, SGS, BV) ready for your bid.
