Power Plant 358 Fence
1. Anti-Climb
Ultra-dense 76.2×12.7mm mesh prevents climbing.
2. Anti-Cut
High-tensile steel resists bolt cutters and saws.
3. Corrosion Resistant
Hot-dip galvanized + PVC coating – withstands cooling tower mist, coastal salt, and industrial pollutants.
4. Rapid Install
Prefabricated panels + post system – minimal outage time for substation upgrades.

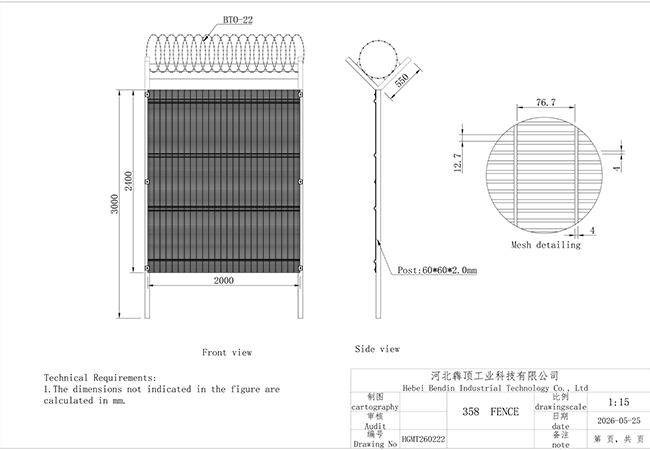

Panel Specifications
I&M Post Power Plant 358 Fence Specifications
| Parameter | Specifications |
|---|---|
| Line Wire × Cross Wire | 4.0×3.0mm / 4.0×4.0mm / 4.5×3.0mm / 4.5×4.5mm |
| Hole Size | 76.2×12.7mm / 75×12mm |
| Panel Length | 2.0m / 2.2m / 2.4m / 3.0m |
| Panel Height | 1800mm / 2000mm / 2200mm / 2400mm / 2800mm / 3000mm |
| Number of Bends | Corresponding to height: 4 / 4 / 4 / 4 / 5 / 5 |
| Common Color | Green RAL6005 / Grey RAL7016 / Black RAL9005 |
| Matching Post | I&M Post (high-structural rigidity, designed for high-vandalism areas) |

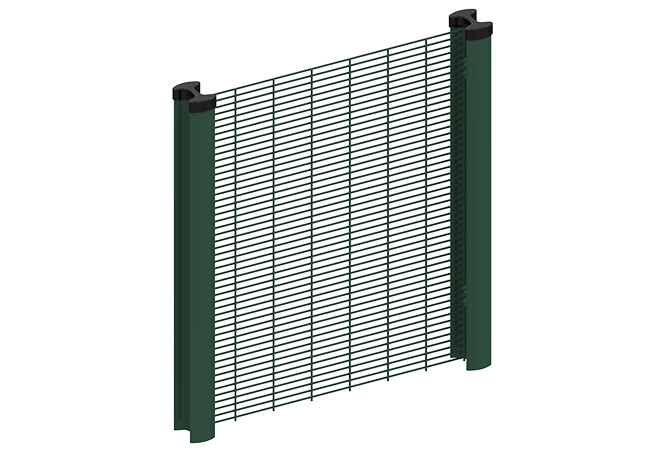

H Post Power Plant 358 Fence Specifications
| Parameter | Specifications |
|---|---|
| Horizontal Wire Dia. | 4mm×3mm / 4mm×4mm / 4.5mm×4mm / 4.5mm×4.5mm |
| Hole Size | 76.2×12.7mm / 75×12mm |
| Panel Length | 2.0m / 2.2m / 2.4m |
| Panel Height | 1800mm / 2000mm / 2200mm / 2400mm / 2800mm / 3000mm |
| Common Color | Green RAL6005 / Grey RAL7016 / Black RAL9005 |
| Matching Post | H Post (no exposed fasteners, panel embedded, maximum rigidity) |
Available Post Systems
Column specifications
| Post Type | Specification |
|---|---|
| Hole Size | 50x50mm/60x60mm/80 x80mm/100 x100mm. |
| Panel Length | 1.8mm/2.0mm/2.5mm/3.0mm. |
| Panel Height | 830mm/2030mm/2230mm/2430mm/2800mm/3000mm. |
| Post Length | 2400mm/2500mm/2800mm/3000mm/3500mm/3700mm. |
Surface Treatment: 1. Black tube Hot-dipped galvanized，2. Galvanized tube PVC coated.
Special Accessories

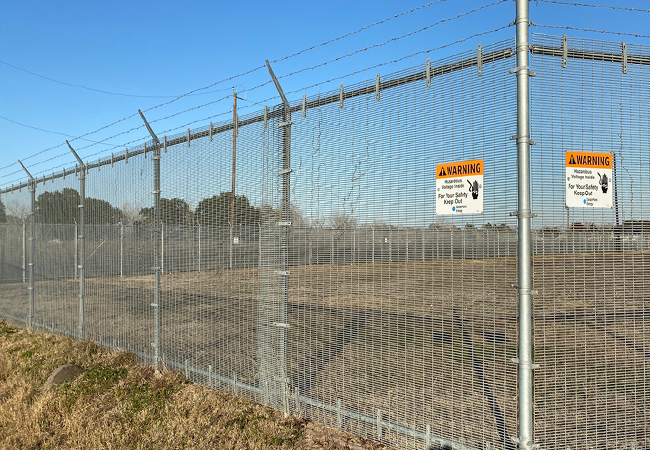

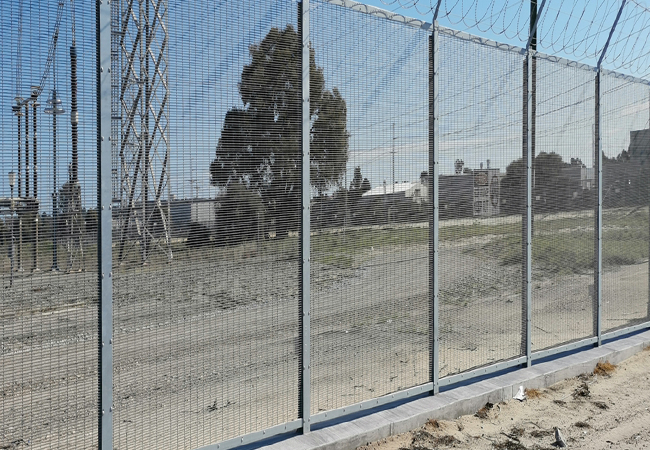

Power Plant 358 Fence Case
Cooling tower exclusion zone, fuel storage yard security.
Double perimeter fencing with intrusion detection, vehicle checkpoint.

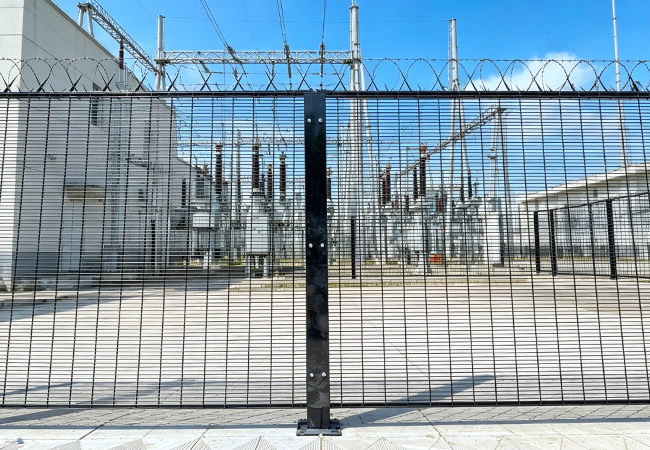

Urban substation anti-climb fence with anti-graffiti coating.
Dam crest fence, transformer yard isolation, access gate control.
6 Steps for Substation Perimeter Installation
Step 1: Security Zone Coordination
Work with plant safety officer. Mark fence line outside energized areas.
Step 2: Post Hole Excavation
Dig holes 1000mm deep. Avoid underground cables – use ground-penetrating radar.
Step 3: Post Setting & Concrete
Set posts plumb. Pour C25 concrete. Cure 48 hours.
Step 4: Panel Mounting
Slide panels into H-slots or attach with security clips. Tighten bolts (torque 45 Nm).
Step 5: Top Razor Wire & Sensors
Bolt Y-extensions. Install razor wire. Clip sensor cables to posts.
Step 6: Final Inspection & Handover
Check plumb, bolt torque, gate operation. Provide as-built drawing.
Choose BDFENCE – the reliable partner for energy infrastructure security.
1. Utility-Grade Materials & Anti-Corrosion
High-strength steel + hot-dip galvanizing + heavy PVC coating. Withstands cooling tower mist, industrial pollution, and coastal salt – 25+ years service life.
2. Customized for Power Plant Zones
Available in H-post, square, and I&M systems. Support custom heights, sensor-ready posts, and anti-ram gates – tailored for substations, switchyards, and fuel storage.
3. Expert Pre-Sales & 24/7 Technical Support
Free CAD layout, NERC compliance checklist, and tender documentation. After-sales: 7×24 responsive service, spare parts, and site visit support.
4. Full Industrial Chain – Factory Direct
Located in Anping. From wire drawing to coating – all in-house. Quality control, fast lead time, competitive pricing.
5. Global Power Plant Experience
Supplied coal, nuclear, solar, hydro, and substation projects across UK, USA, Germany, Australia, Canada, and more.
📌 In short: Premium steel + dual corrosion protection + compliance-ready + global logistics = BDFENCE, your trusted partner for power plant perimeter security.
